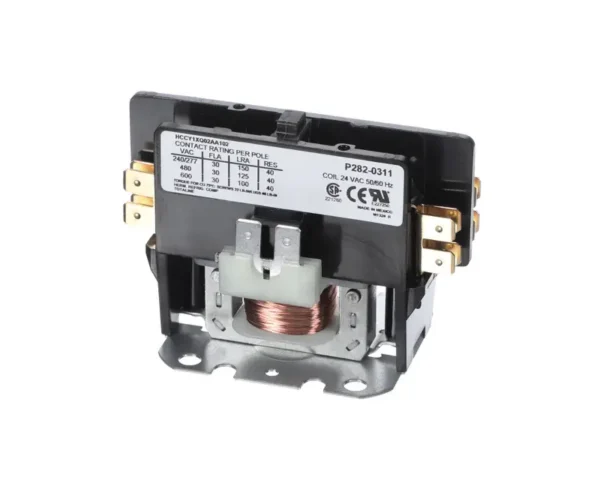

Carrier HVAC P282-0311 Contactor, Bobina De 24 Voltios, 50/60 Hz, 30 Amperios, 1 Polo
$18.00
The genuine Carrier HVAC P282-0311 Contactor is a heavy-duty electrical switch engineered to regulate electrical flow to your outdoor air conditioner or heat pump compressor and fan motor. This definite purpose component features a 1-pole design with a shunt, a 30 Amp continuous rating, and a low-voltage 24V control coil triggered by your thermostat. Manufactured to precise factory standards by Carrier/Totaline, it delivers reliable performance, minimizes arcing, and restores your cooling system to factory efficiency.
Keep Your HVAC System Running Smoothly and Safely
Avoid system downtime and protect your equipment with the Carrier P282-0311 Genuine OEM Replacement Contactor. Acting as the primary electrical gateway for your outdoor condensing unit, this component uses a low-voltage (24V) command from your thermostat to close its contacts and safely route high-voltage power straight to the compressor and blower motors.
Opting for a factory-original replacement by Carrier / Totaline guarantees accurate terminal fitment and premium silver cadmium oxide contact surfaces. These specialized contacts mitigate electrical arcing, prevent dangerous overheating, and safeguard your system’s most expensive electrical assemblies from premature failure.
Full Technical Specifications

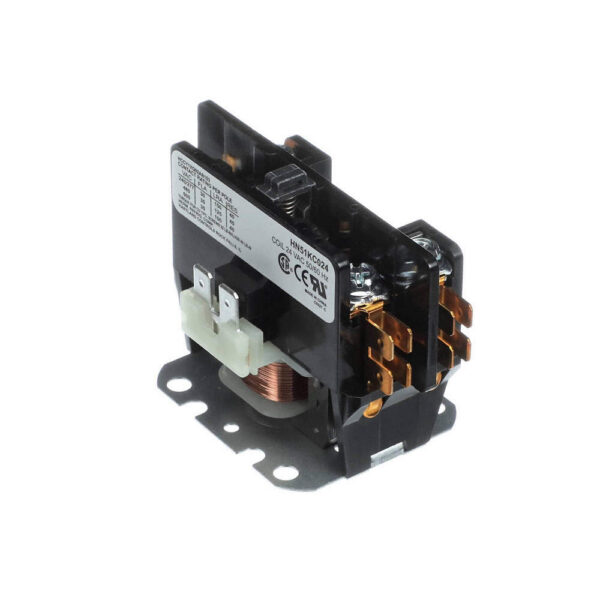

- Part Number: P282-0311 (Direct upgrade for legacy part numbers HN51KC024, HN51CB025, and HN51KB024)
- Coil Voltage: 24 VAC
- Frequency: 50 / 60 Hz
- Full Load Amperage (FLA): 30 Amps
- Resistive Amperage: 40 Amps
- Pole Configuration: 1 Pole with side Shunt
- Terminal Connections: Heavy-duty screw terminals & 1/4″ quick-connect spade terminals
- Safety Approvals: UL Recognized, UL Listed, and CSA Certified
Brand and Model Compatibility
This definite purpose contactor is a drop-in factory replacement for an expansive lineup of residential and light commercial equipment manufactured under the Carrier corporate family. It fits equipment from:
- Carrier
- Bryant
- Payne
- Totaline
- Day & Night / Heil / Tempstar
Popular Compatible Unit Models: Series 50HJ (e.g., 50HJ 006 520), Series 48TJF (e.g., 48TJF007 510), and Series 50TJ (e.g., 50TJ 006 510), among multiple other standard central AC packages.
Common Signs Your System Needs a New Contactor
- The outdoor condenser unit chatters or makes a loud buzzing sound, but the fan and compressor won’t turn on.
- The outdoor unit stays running continuously, even when the thermostat turns off (stuck or welded contacts).
- Visible pitting, black burn marks, or melted plastic casing on your existing contactor block.
